·     Solvent-free, low odour

·     Good mechanical & chemical resistance

·     Seamless – prevents ingress of chemicals into the substrate and prevents bacterial growth

·     Hygienic – provide easy to clean dust free surface

·     Environmentally friendly

·     Available in variety of colours

• Exhibition hall & showroom
• Hotel Lobbies & entryways
• Residential & commercial floor
• Offices
• Restaurants
• Garage floors

THEORITICAL COVERAGE

2.5 kg/m2

PACKAGING

Available in 4 & 20kg set

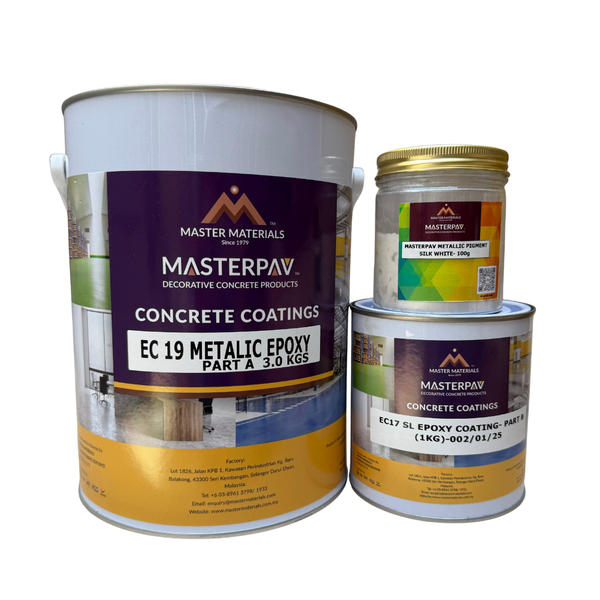

 4kg set (3kg Part A: 1kg Part B) + 100g MASTERPAV Metallic (approx. 1.6m2)

20kg set (15kg Part A: 5kg Part B) + 500g MASTERPAV Metallic (approx. 8m2)

1. Prepared Concrete Substrate
2. 0.3 kg/m2 MASTERPAV EC 10
3. 2.5 kg/m2 MASTERPAV EC 19

SURFACE PREPARATION

·      The concrete surface to receive the MASTERPAV EC19 Metallic Epoxy Coating shall be subjected to mechanical grinding to achieve a concrete surface profile (CSP) 1 – 3 as recommended by ICRI.

·      The concrete surface shall be thoroughly clean and free from any debris or dust by subjecting to high-pressure cleaning or vacuum machine.

·   It is recommended to conduct concrete moisture test before application of MASTERPAV EC19 Metallic Epoxy Coating. Concrete substrate shall have moisture content of maximum 4%. For concrete substrate with moisture content higher than 4%, a moisture barrier is recommended.

·   All cracks are to be rectify before actual application.

PRIMER

·      Pour the entire content of Part B into Part A of MASTERPAV EC10.

·      Mechanically mix the mixture using low power mixer until homogeneous.

·      Apply the mixed material using suitable roller and allow it to dry overnight.

TOPCOAT

·   The previously applied primer should be cured, dry to the touch, and no longer tacky.

·   Light sanding the surface (promotes good bond between coats), follows by vacuuming.

·   Wipe clean the dust using a microfiber wipe with a suitable solvent (eg: MASTERPAV Thinner 101)

·      Pour the entire content of Part B into Part A of MASTERPAV EC19 Metallic Epoxy Coating.

·      Mechanically mix the mixture using low power mixer until homogeneous.

·      Divide the mixed epoxy into 2 cups and add color to each one (Cup 1: Base color, Cup 2: Highlight color). Cup 1 should be the main base color and have most of the epoxy, while Cup 2 should be your highlight color and have less epoxy.

·      For every 4kg (A+B) epoxy resin, 1 pack of MASTERPAV Metallic pigments (100g) is recommended.

·      Pour out the main base color which have most of the epoxy and spread it using 5mm notched floor squeegee.

·      Use microfiber roller (deshedded) to blend the base and highlight epoxy to customize the design.

·      The floor will keep self-leveling for hours. Allow the floor to cure 24 hours before you allow anyone step on it. (Pro tips: Spray 91% isopropyl alcohol 15 minutes after application to get rid of air bubbles in the epoxy surface)

·   The MASTERPAV EC19 Metallic Epoxy Coating need 2.5kg for every m2 of the project.

CAUTION! DO NOT LEAVE MIXED PRODUCT IN A BUCKET. THIS WILL CAUSE A FASTER CHEMICAL REACTION & THE EPOXY WILL THICKEN FASTER THAN IT SHOULD. THIS WILL COMPROMISE THE WORKING TIME. REFER TO POT LIFE DATA BEFORE USE.
